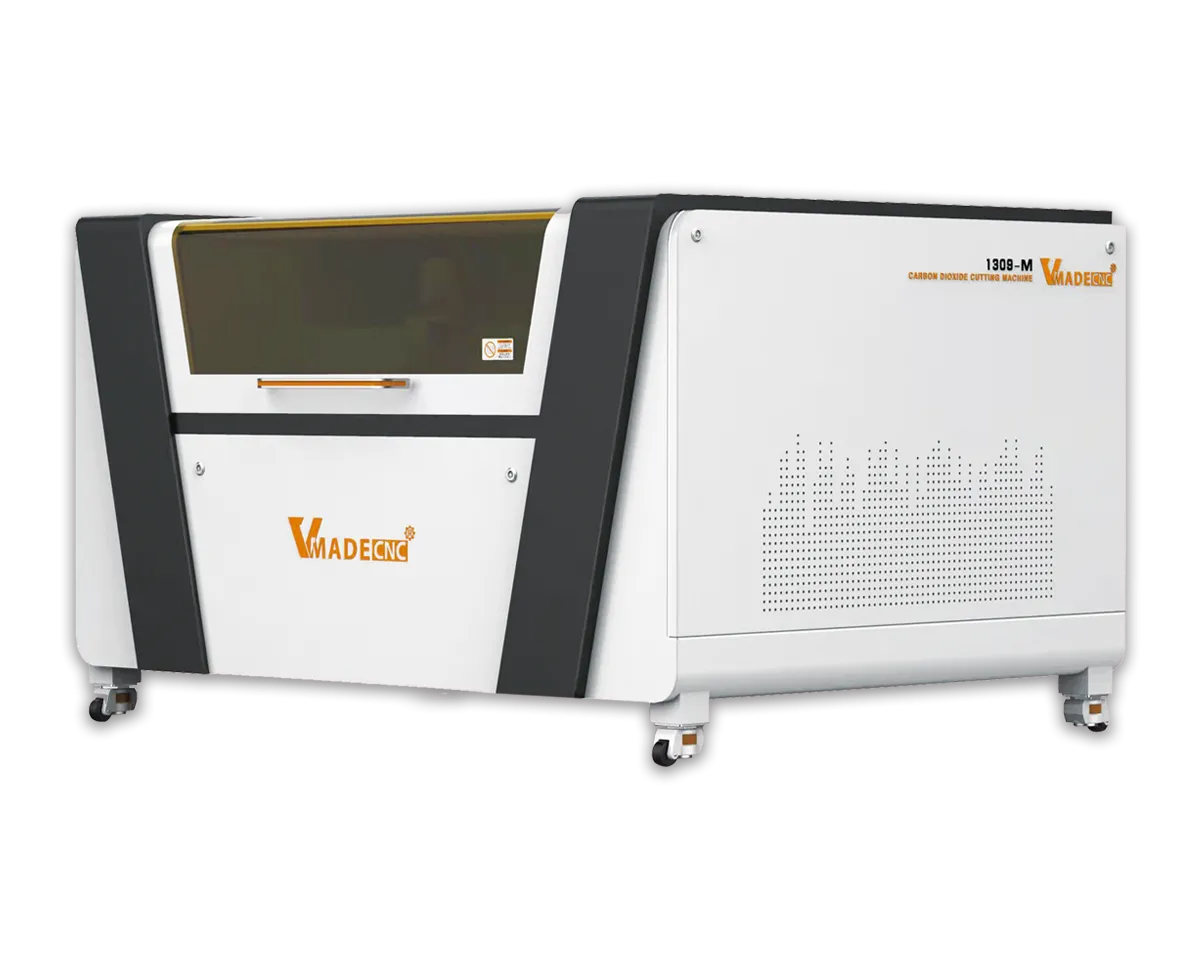

CO2 Laser Cutting Machine

N Series

CO2 Laser Cutting Machine

Сразу запросить
Главная / Товары / Станок для лазерной резки CO2 / Серия N / CO2 Laser Cutting Machine

>> Drive system with high precision linear guide and slide block, high precision ,wearresistance, small resistance, high speed;arc-gear synchronous belt 3m,stabletransmission, strong shock absorption ability and small noise.

>> Red cross accurate position, convenient and quick in finding engraving and cutting position.

>> Equipment with automatic / manual modulation focused laser head, responsive andaccurate to ensure sculpture quality.

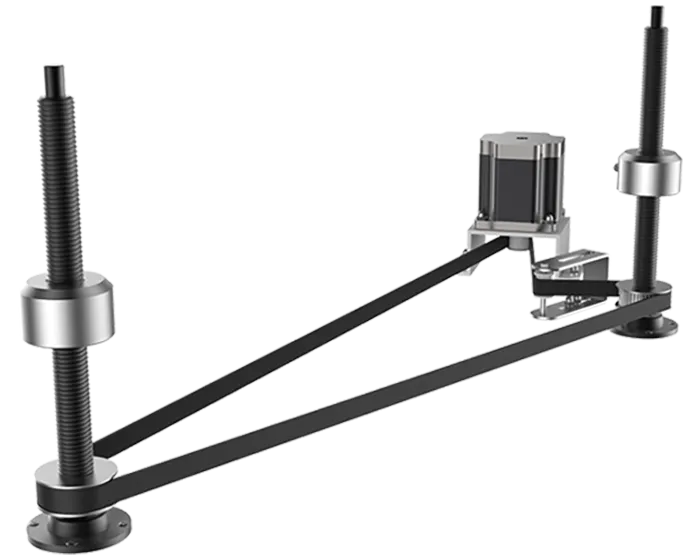

Electronic lifting

Electronic lifting

The machine can automatically adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.

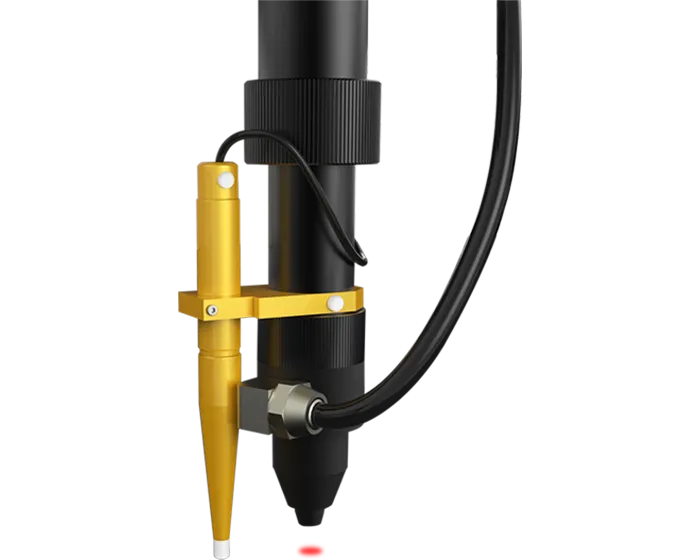

Automatic Focusing

Automatic Focusing

Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.

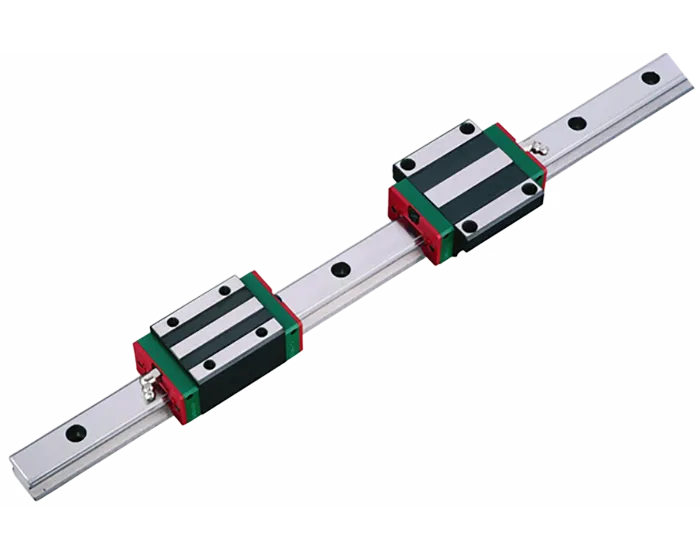

Taiwan Hiwin Linear Guide Rail

Taiwan Hiwin Linear Guide Rail

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

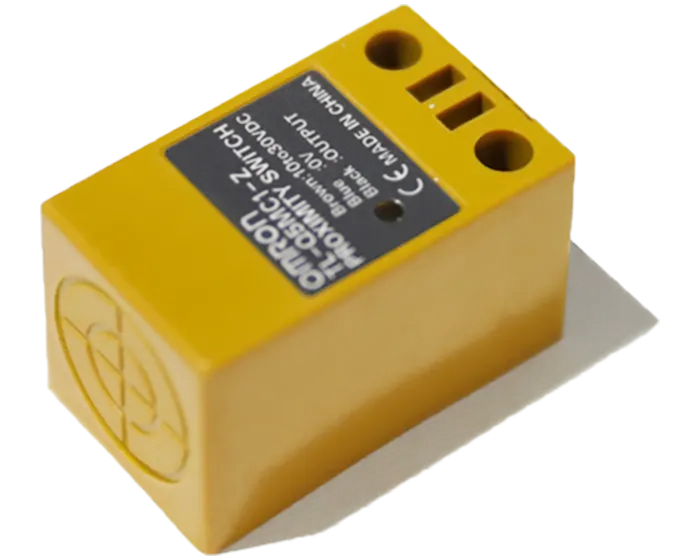

Japan OMRON

Japan OMRON

Electronic Component

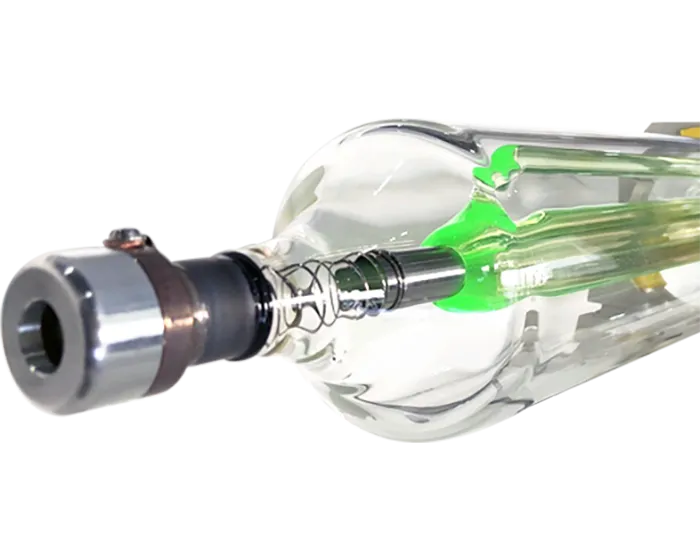

RECI Laser Tube

RECI Laser Tube

Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.

Технические параметры

Laser - TypeSealed CO2 laser tube
Laser power80W 100W 130W 150W 200W (optional)
Cutting Area1300mm x 900mm
Whole Machine Size1820* 1310* 1070mm
Cutting Speed0 - 24,000mm/min
Resetting Positioning Accuracy±0.05mm
Working VoltageAC 110 -220V±10%, 50-60Hz
Gross Power<1,500W
Operating Temperature0-45℃
Operating Humidity5-95%
Minimum Shaping CharacterEnglish 1x1mm
Work Table18cm lift platform
Driving Systemstepper
Cooling Modewater-cooling and protection system
Auxiliary EquipmentsExhaust-fans, air-exhaust pipe
Controlling SoftwareDSP control system
Compatible SoftwareCorelDraw AutoCAD Photoshop

Применение промышленности

Wood, organic glass, plastic, garments, paper, leather, rubber, and other nonmetal materials.
