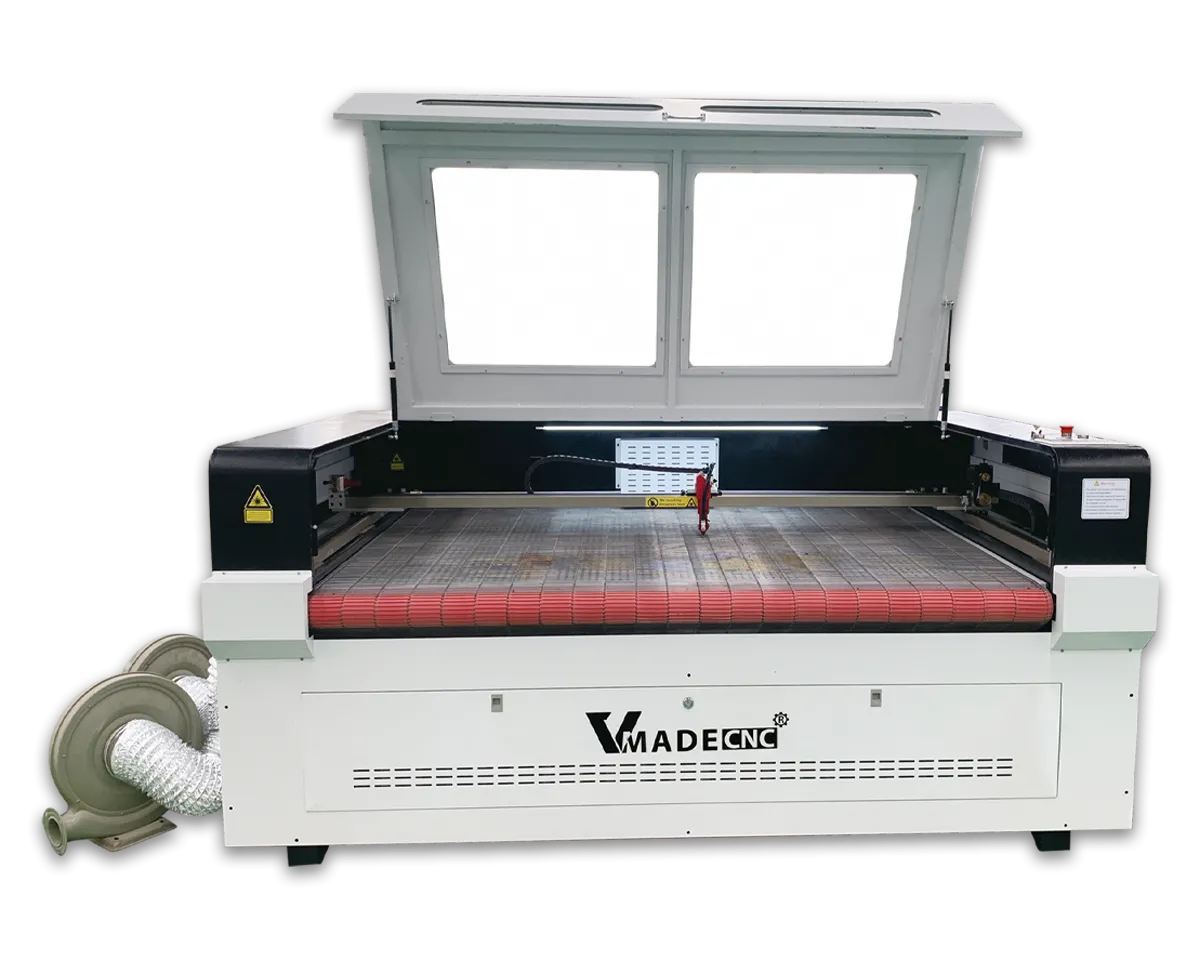

>> The laser cutter with auto feeding system fixed with a selective rolling&automatic feeding system,which make the whole cloth processing steps finish in one time.
>> The laser cutterengraverforsaleis suitable for engraving and cutting on very long work piece, such as one roller of cloth,fabric, leather, garment.
>> This fabric laser cutter especially applied in fabric and garments industry.

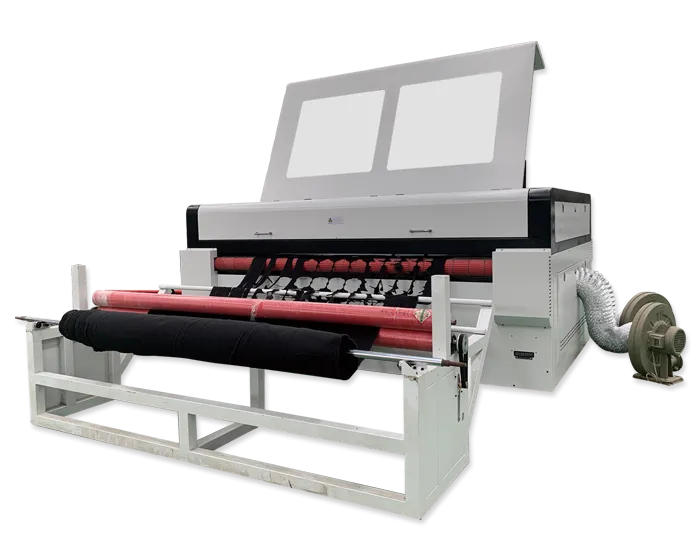

Feeding System
Can be upgraded to electric automatic feeding system

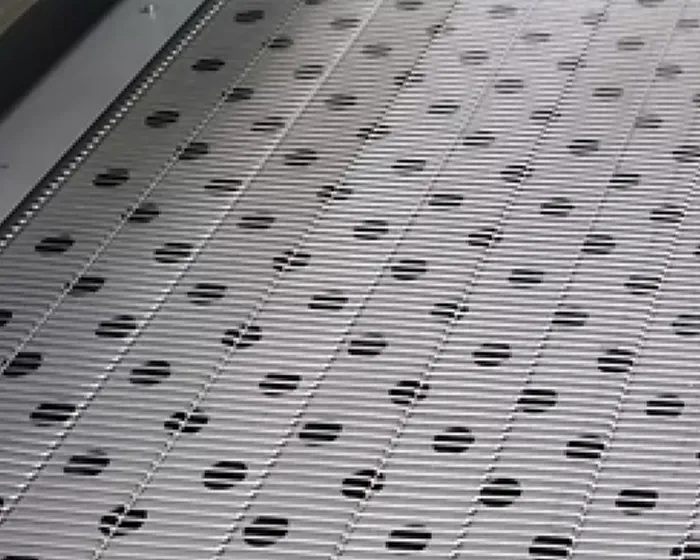

Working Platform
Automatic feeding plateorm, labor-saving, intelligent control

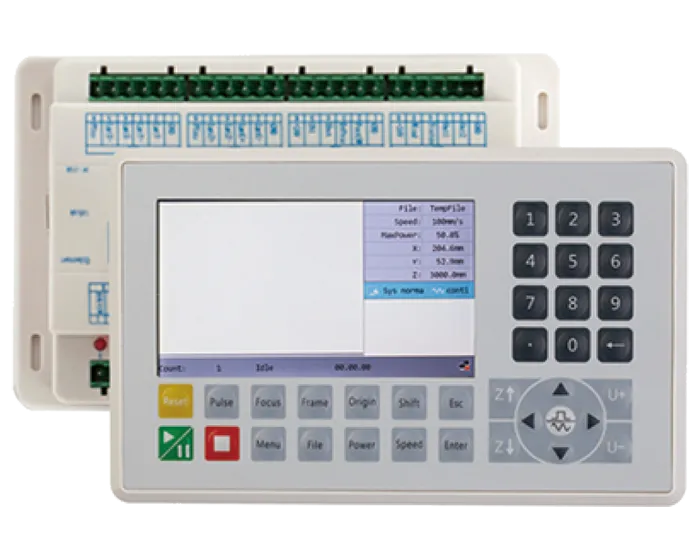

RD Control System
Smart control panel-RD Display work process clearly.
Professional control system, easy to operate

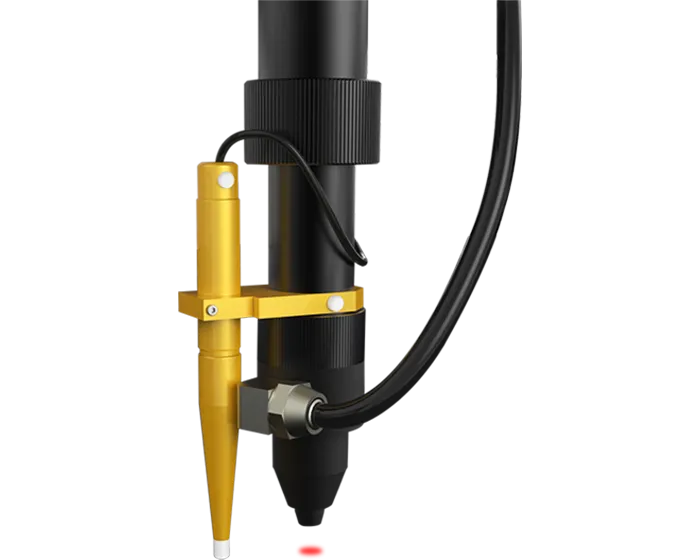

Automatic Focusing
Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.

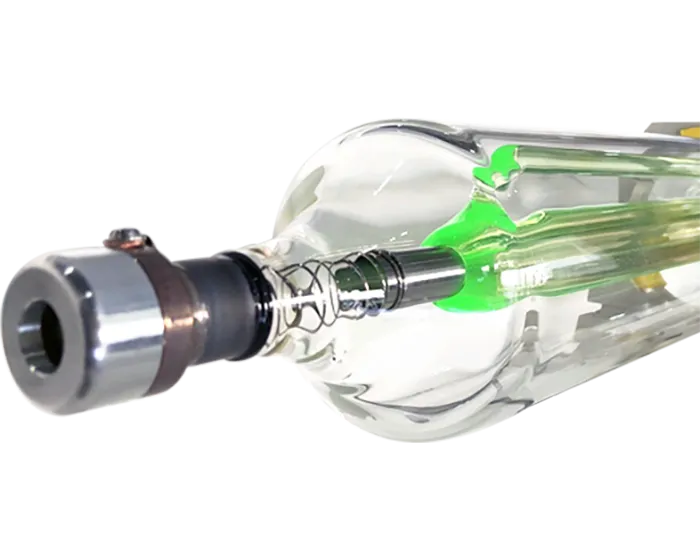

RECI Laser Tube
Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.
One Button Starting Fan
The fan can be started by one button. You can control the fan independently.
Технические параметры
| Model | Auto Feeding Laser Cutting Machine |
| Working area | 1600*2600/1600*1000/1800*1000/1800*1300mm |
| Laser type | sealed co2 glass laser tube |
| Laser power | 80W/100W/130W/150W/160W/180W/300W (Optional) |
| Engraving speed | 0-800mm/s |
| Cutting speed | 0-400mm/s |
| Cutting thickness | 0-20mm ( depends on materials) |
| Resolution rate | ±0.05mm |
| Data transfer interface | USB2.0 |
| Working voltage | 220v±10% 50hz 110v±10%60hz |
| Min shaping character | Character:2*2mm letter:1*1mm |
| Software | RdworksV8/ CorelDraw/AutoCAD |
| Working table | stainless steel net + auto-feeding working table |
| Supported graphic formats | BMP PCX TGA TIF PLT CDR |
| Working temperature | 0-45°C |
| Working humidity | 5%-90% |
| Rsolution ratio | <4500DPI |
| Applicable materials | Fabric, leather etc Fexible material |
| Package | Packing in export wooden cases |
| The above parameters are la boratory test results, subject to actual operating conditions. | |
Применение промышленности
PU: Auto feeding laser cutting engraving machine for PU materials engraving.
Fabric: Auto feeding laser cutting engraving machine for fabric clothing embroidery
Leather: Auto feeding laser cutting engraving machine for leather engraving
