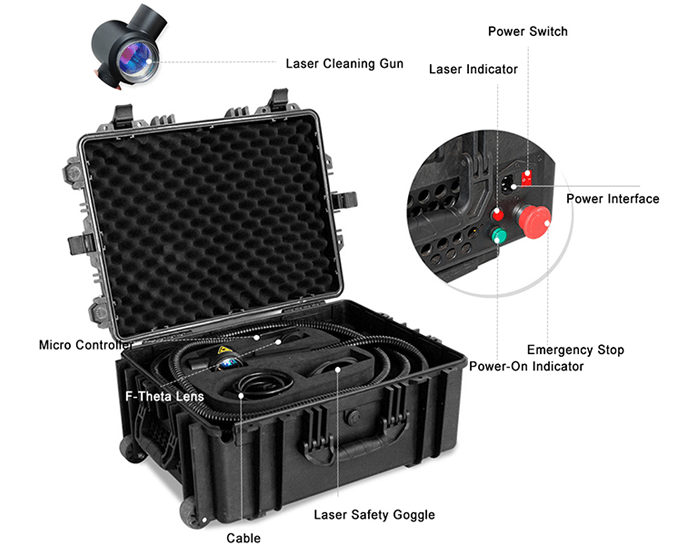

Machine Features
The laser cleaning machine relies on the advantages of the MOPA structure anditadopts100watts JPT brand pulsed fiber laser source as the cleaning light source.
This MOPA type fiber laser source has the characteristics of independently adjustable pulsed width and frequency.
It can maintain a high and stable peak laser power output even when the pulse width and frequency are changed to adapt to a wide range of cleaning situations.
The portable laser head is small and light-weight,it can be used for a long time.
The button and handle are integrated design,it's very easy to use.
It has portable and integrated design,super integrated injection molding body, slow down attacking design, it is compressive,anti-drop and wear-resistant.

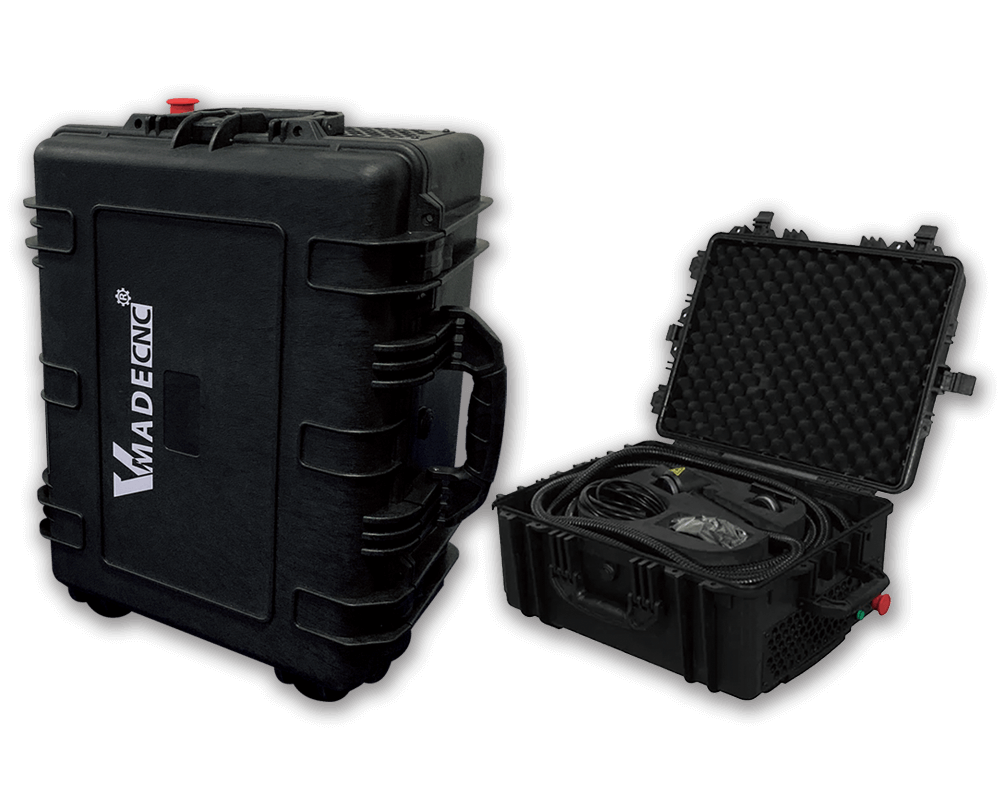

It adopts draw-bar box design,can be carried easily for high-speed railway or air shipment.

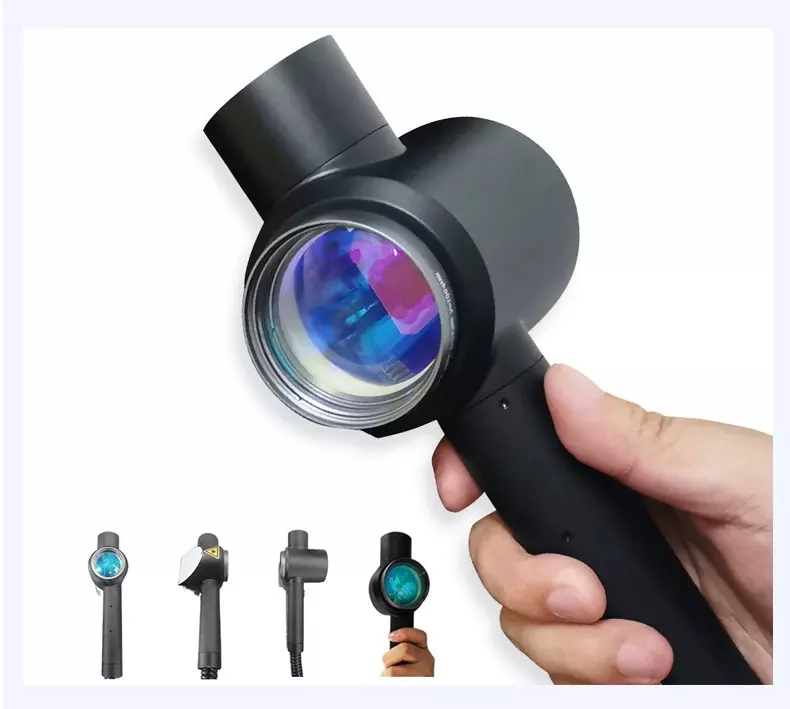

HANDHELD LIGHTWEIGHT FLEMIBLE
Any workpiece can be easilyrust removal Safety protect.Double-click to start work.

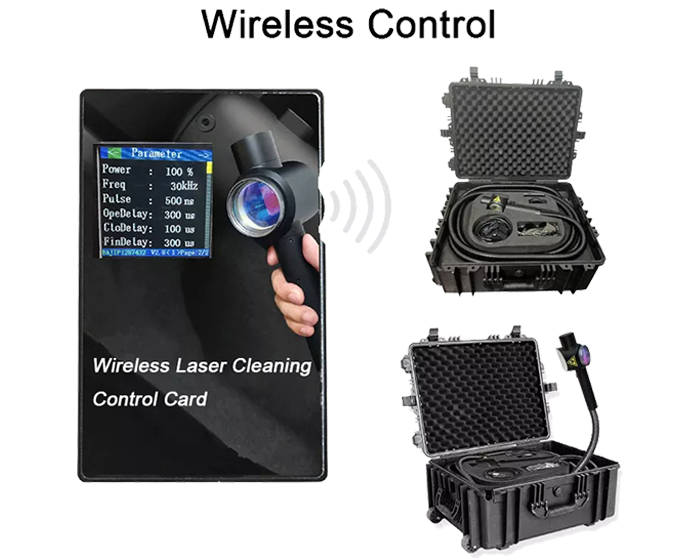

INTELLIGENT CONTROL SYSTEM
Remote control parameters Small and convenient
The parameters can be set in advance and then
imported and used Power parameters can be adjusted
Технические параметры
Model | Fiber Laser Cleaning Machine |
Laser source | JPT fiber laser |
Laser power | 100W |
Supply voltage | Single-phase 220V±10%, 50/60Hz AC |
Machine power consumption | 2500W(within water chiller) |
Output working method | Pulse/continuous |
Output armor cable length | 5m |
cooling method | Air-cooled |
Supply voltage | 220V |
Maximum power consumption | 450W |
Whether anti-high reflection | yes |
Storage temperature range | 10-60℃ |
Washing machine size | 617*469*291mm |
Package dimensions | 750*580*500mm |
weight | Net weight 28Kg Gross weight 46Kg |
Laser head weight | 0.62Kg |
Place of origin | Shenzhen China(Mainland) |
Guarantee | 1 year |
Применение промышленности

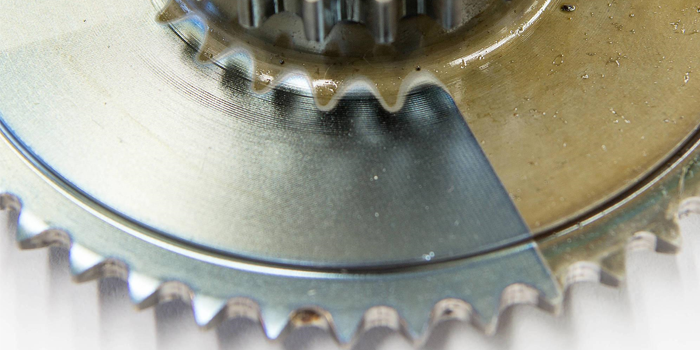

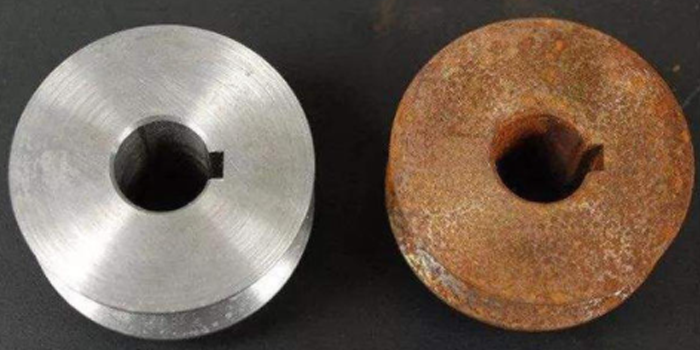

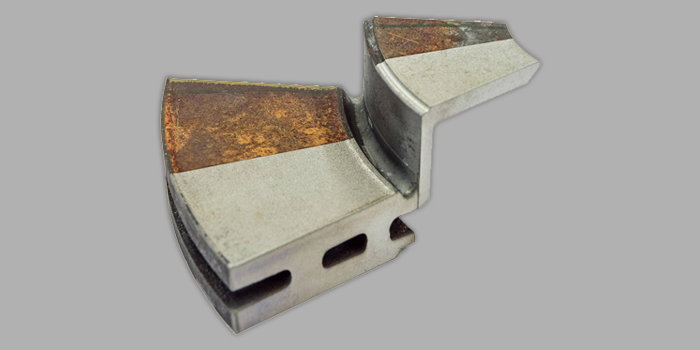

Applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits and other industries.
With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.
