CO2 Flying Laser Marking Machine

Серия CO2

CO2 Flying Laser Marking Machine

Сразу запросить
Главная / Товары / Лазерная маркировочная машина / Серия CO2 / CO2 Flying Laser Marking Machine

>> It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces.

>> It is widely used in various industries.

>> Single person can complete the whole operation.

Laser Module

Laser Module

DAVI/ ACCESS/ COHERENT as your reference.

20w/ 30w/ 55w laser power as your requirement.

Stable operation, lifespan of more than 100, 00 hours.

Galvo Scan Head

Galvo Scan Head

Newest digitagalvo scanner head

Aperturesize16mm

Linearity>99.90%

Repeatability<8urad

Longterm drift over 8 hours

<0.5urad

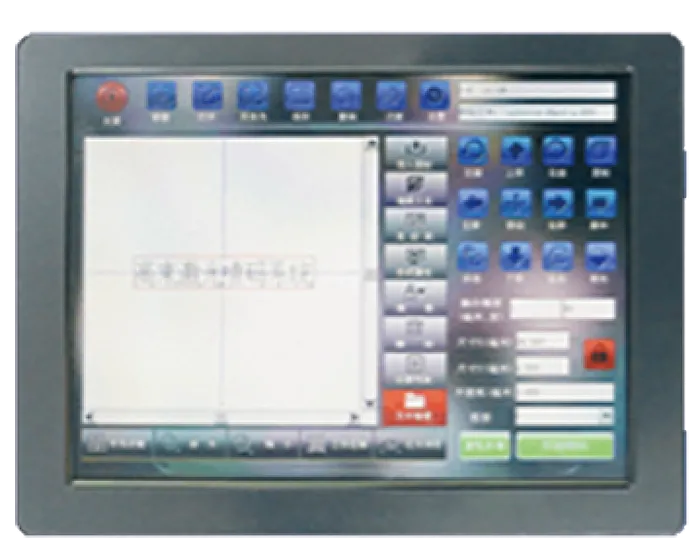

Earain System Touch Screen

Earain System Touch Screen

Intelligent operation

High marking accuracy

easy to use

Interface supports multiple languages

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.

Технические параметры

Product NameCO2 Flying Laser Marking Machine VLF-CO2-10/30/60/100F
Display10.4 Inch Touch Screen
Rated Power10W/30W/60W/100W
Cooling MethodForced Air Cooling
Suitable MaterialsFlat, Round, Fugged
Processing MethodOnline, Static
Effective Focal Length175mm
Marking RangeStandard 100mm*10mm
Etching Speed13m/s
Working Hours20, 000 Hours
Wavelength1064nm
Transfer PortRS232, USB, Network Port
Structural MaterialAll Aluminium Structure
Size149cm*60cm*57cm
Weight43KG

Применение промышленности

>> It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces.

>> It is widely used in various industries.

>> Single person can complete the whole operation.

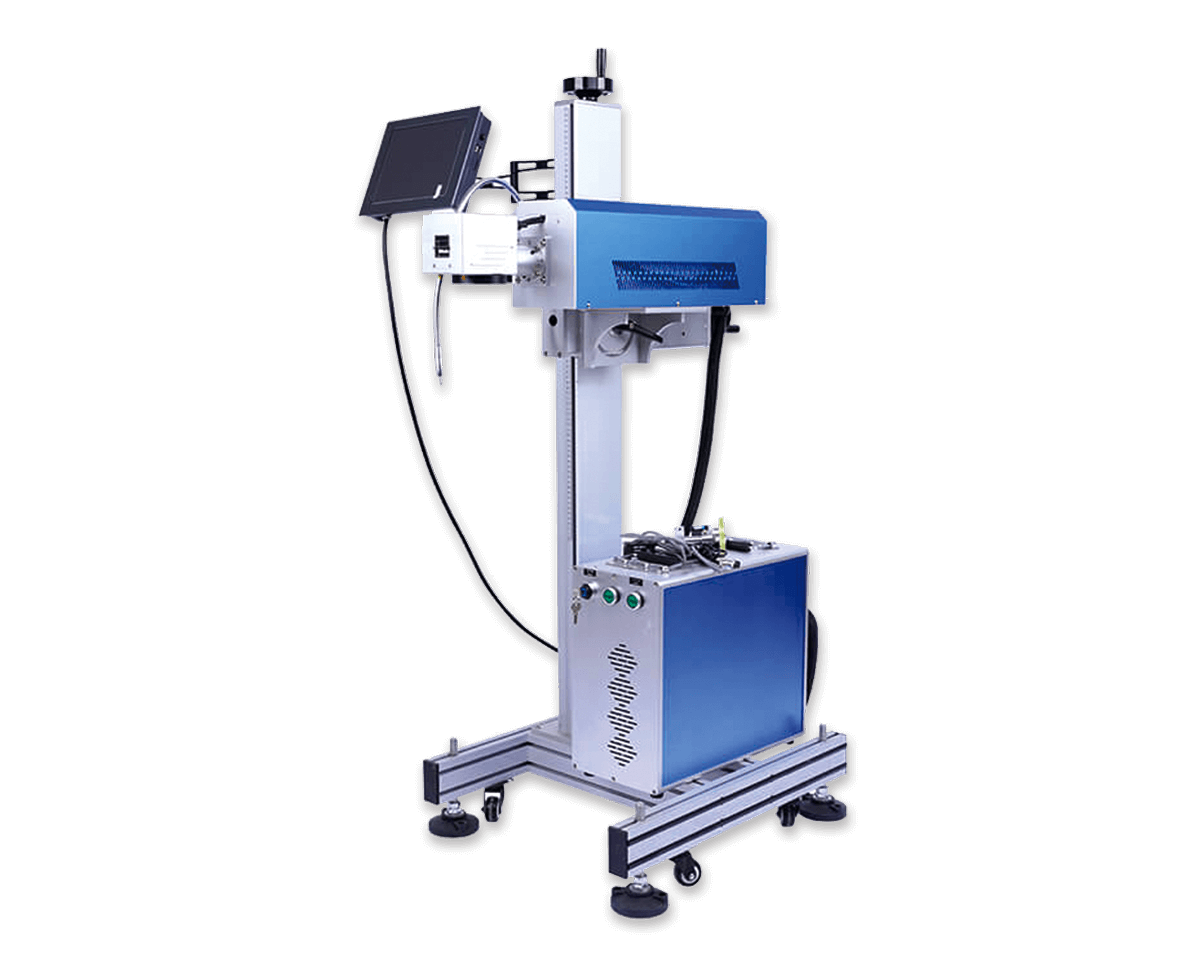

CO2 Flying Laser Marking Machine

CO2 Flying Laser Marking Machine

CO2 Flying Laser Marking Machine
