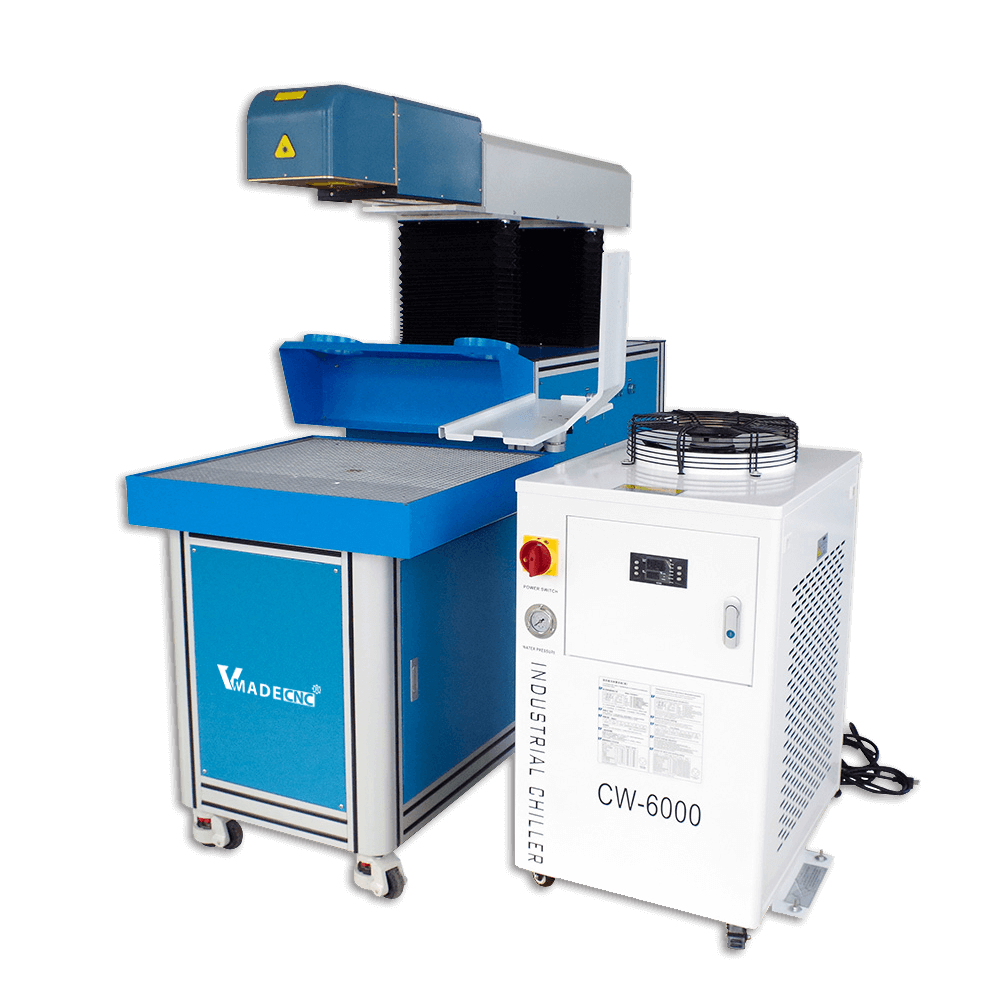

3D Dynamic Focus RF CO2 Laser Marking  Machine

3D-серия

3D Dynamic Focus RF CO2 Laser Marking Machine

Сразу запросить
Главная / Товары / Лазерная маркировочная машина / 3D-серия / 3D Dynamic Focus RF CO2 Laser Marking Machine

3D Dynamic Focus RF CO2 Laser Cutting Machine is Equipped with hi-tech dynamic focusing scanning mirror and control card, it is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is specially designed for the laser scanning with tiny light spot, large working range and high flexibility. Furthermore, this equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, which can ensure the stability of the system under long-hours working conditions.

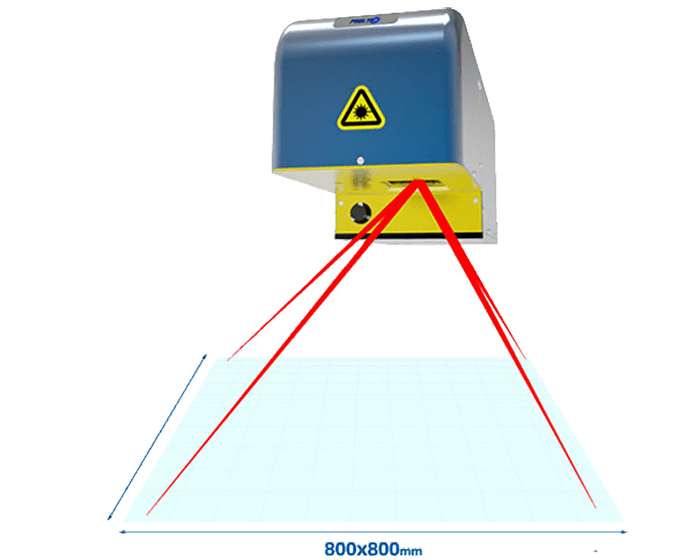

3D Dynamic focusing Galvo head

3D Dynamic focusing Galvo head

*US made CTI servo motor;

*Japan made THK guide rails for dynamic system

*US made II-VI optic mirrors

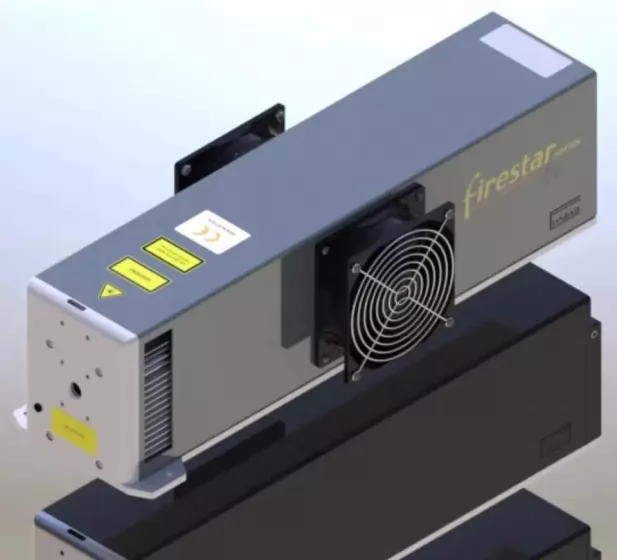

Synrad metal laser tube

Synrad metal laser tube

*Famous brand, working more stable;

*Small spot size, fine marking and cutting effect;

*High efficiency;

*Long time lifetime.

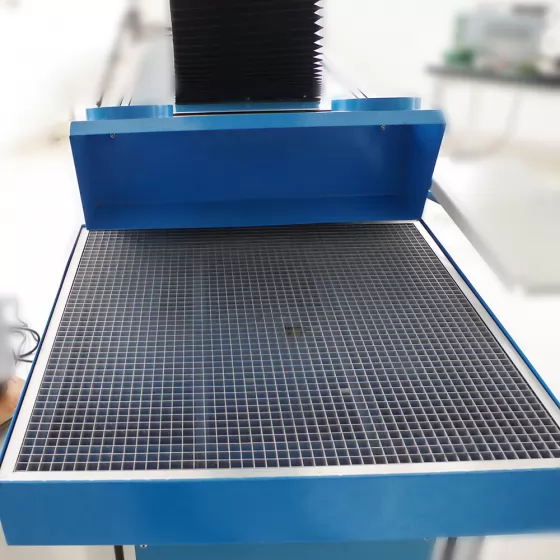

Honeycomb working table

Honeycomb working table

*Heat is easy to dissipate

*Working area can be from 300*300mm to 1200*1200mm(as per lase source power)

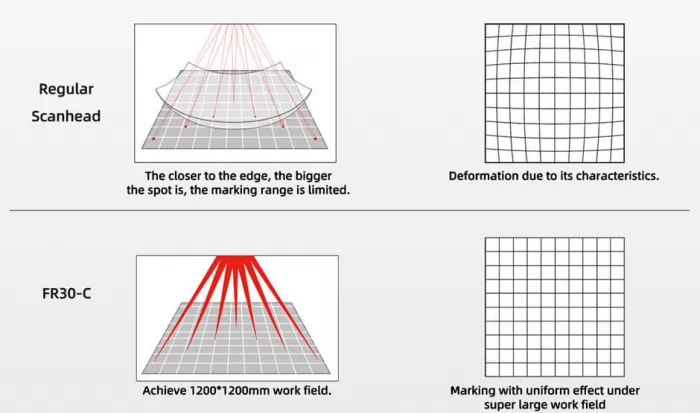

Flexible large field processing

Flexible large field processing

Through the dynamic focus system control, it can be operated from 300*300mm to 1200*1200mm work field.

Industrial water chiller

Industrial water chiller

*Cooling system for laser source, to ensure the machine working is more stable;

*High quality Industrial grade.

Технические параметры

Model

CO2-3D

Working size

100/200/300/400/500/600/800/1000/1200mm

Laser power

100W 150W 275W US Synrad or US Coherent

Galvo system

High quality Galvo scanning system- 3D

Laser Power Control

0-100% Software Controlling

Axial Speed

8000mm/s

Motion System

Servo Motor/ stepper motor

Repeat Location Accuracy

± 0.01mm

Voltage

110V/220V, 50HZ/60HZ

Cooling System

Industrial water chiller

Min character

0.2mm

Operate system

Windows XP/7/8/10

Format Support

PLT/DXF/AI/SDT/BMP/JPG/JPEG/GIF/TGA/PNG/TIF/TIFF/STL

CorelDraw/PhotoShop/AutoCAD/Illustrator

Software

Lenmark-3DS

Package size

Length*width*height:1800x750x1500mm    Gross weight:300kg


Применение промышленности

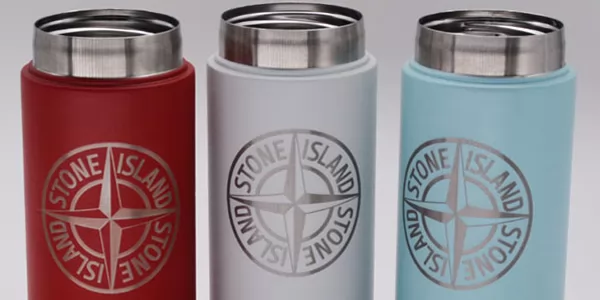

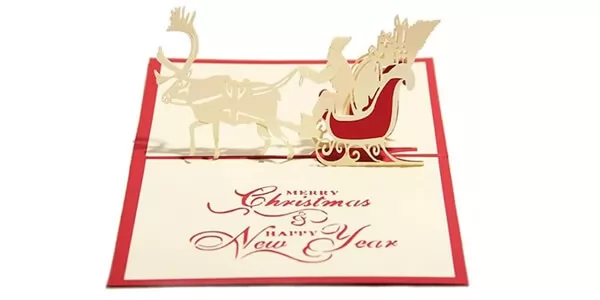

Marking & Engraving material:

Wood, paper, leather,cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
