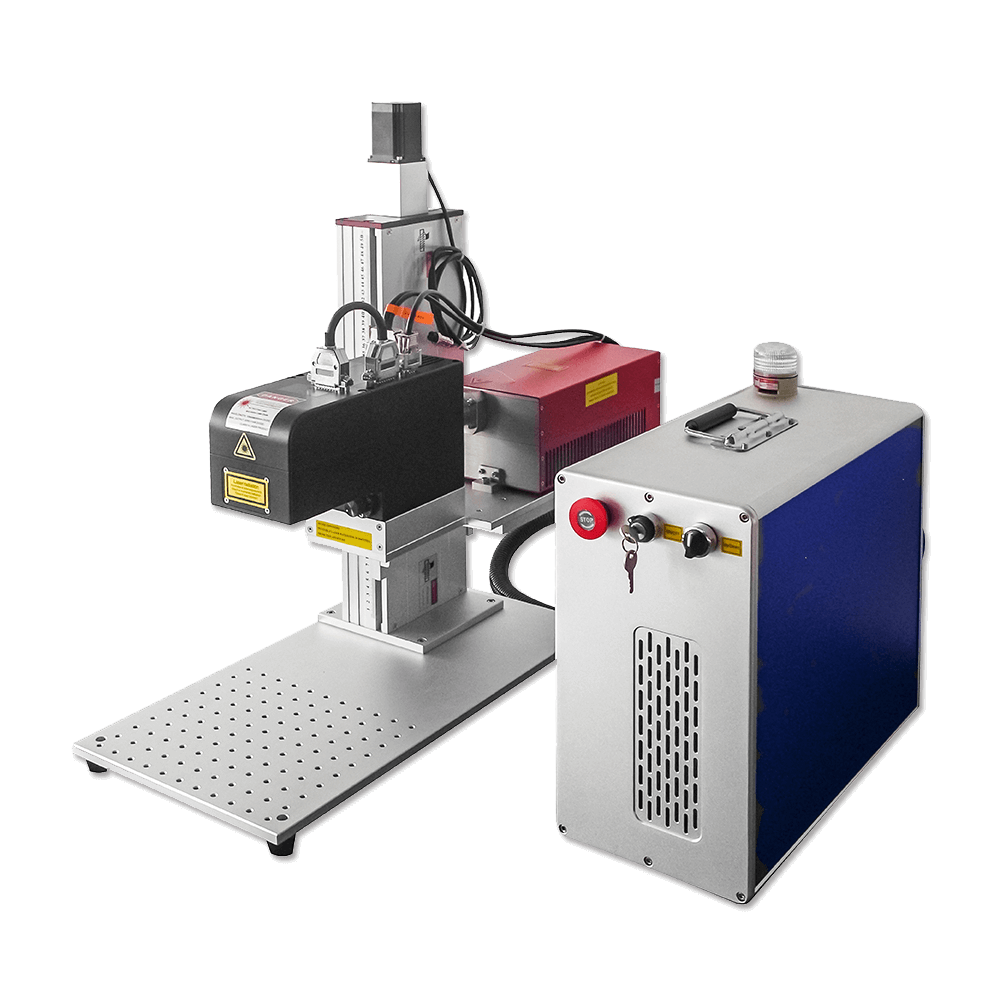

3D dynamic focus laser marking machine

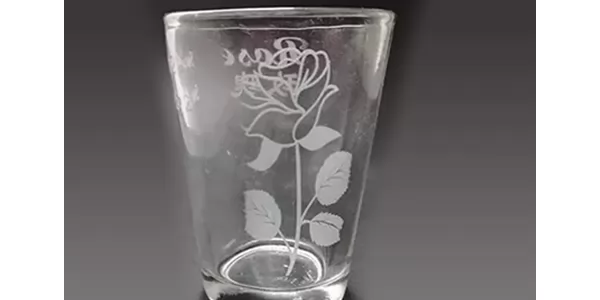

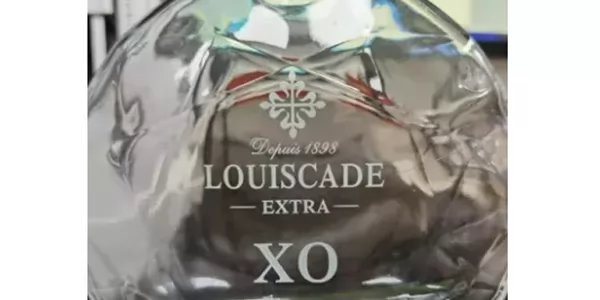

In addition to complete plane marking (Plastic, glass, silicone, 3c, crystal, PCB). 3D laser can mark curved surfaces, mold
engraving and large area marking such like 300*300mm or 400*400mm.

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

With high beam qualitythe ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone

F-10 3D Galvanometer head

(1)Double driving Z axis dynamic focus module design,reponse frequency ≥100HZ@±10°.

(2)Designed based on output beam

characteristics of popular laser on the market, maximize the use of optical lens.

(3)Standard XY2-100 protocol, open interface,compatible with popular control card (EZCAD or other brand's control card) on the market.

(4)Support wavelength: 1064nm

Motorized Z axis

No longer use manual rotation, we use switches to control the lift

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Технические параметры

Machine Model	3D- 3W 5W 10W 15W
Laser type	UV LASER
Laser source	JPT/INNGU/INNO/Huaray
Wavelength	1064nm
Control software	LenMark-3DS
Marking Area xyz	MAX support 600*600mm
Graphic format supported	Jpg,Bmp,DXF,PLT,AI,STL
Working voltage	AC220V 50HZ, AC110V 60HZ
Cooling type	Air cooling/Water cooling
Operating parameter	-5~50℃
G.W.	80KG
Package(LWH)	1020480830mm
