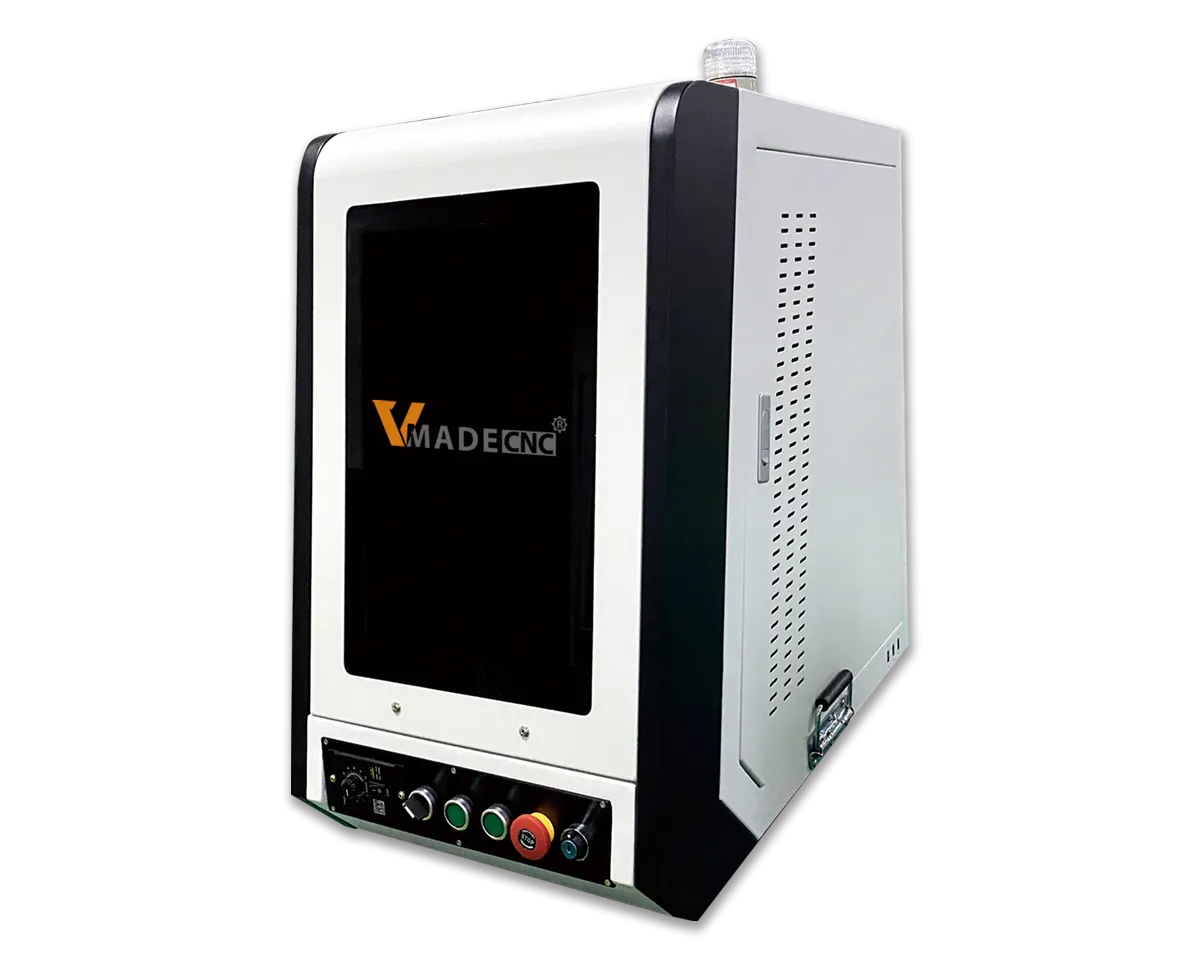

Mini Cover Fiber Laser Marking Machine

Серия волокон

Mini Cover Fiber Laser Marking Machine

Сразу запросить
Главная / Товары / Лазерная маркировочная машина / Серия волокон / Mini Cover Fiber Laser Marking Machine

>> High conversion efficiency (over 60%) and low laser threshold

>> Simple structure, flexible medium working material, easy to use

>> The beam is of high quality (easily approaching the diffraction limit)

>> The laser output spectral lines are many and the tuning range is wide

>> Small volume, light weight, good heat dissipation effect, long service life

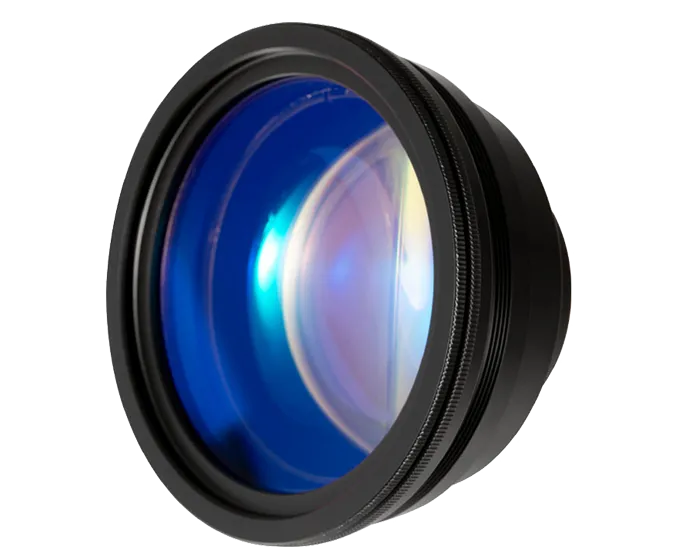

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Motor Z axis lifting

Motor Z axis lifting

No longer use manual rotation, we use switches to control the lift

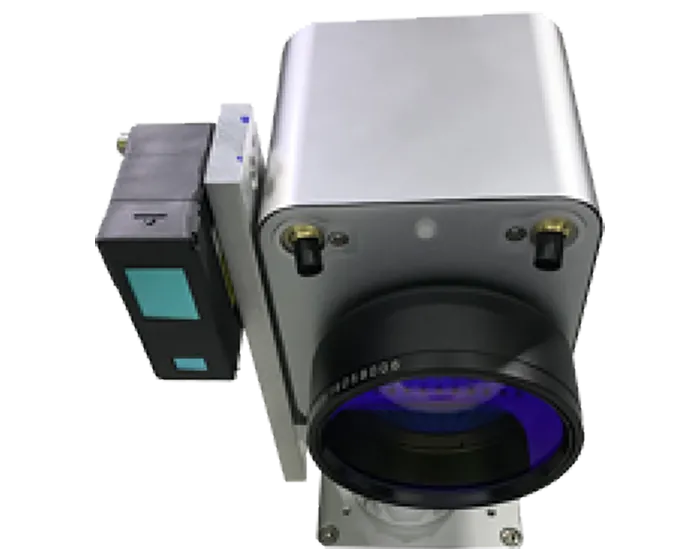

AUTO FOCUS

AUTO FOCUS

When we mark work-pieceswith different heightthe displacement transducer can Auto matically sense workpiece height.

The Galvo head will be up and down automatically no need movetheGalvohead by hand when marking workpieces with differ ent height.

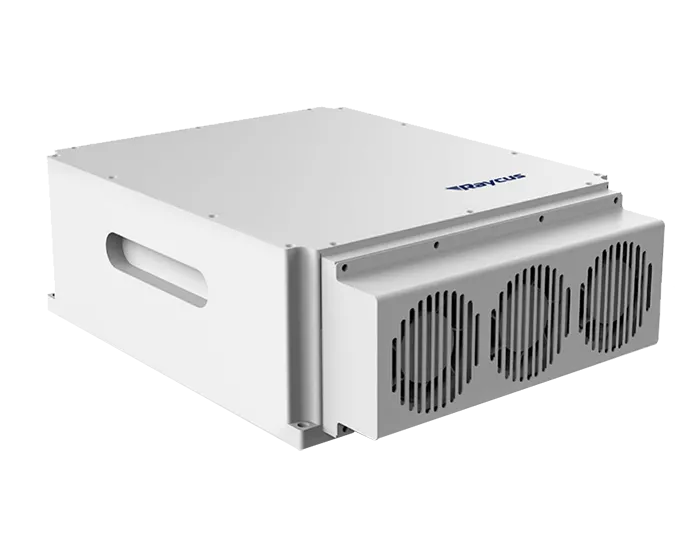

Raycus China best laser source

Raycus China best laser source

1.Highly stable laser output

2.High single-pulse energy

3.High marking efficiency

4.Short pulse setup time

5.High reliability

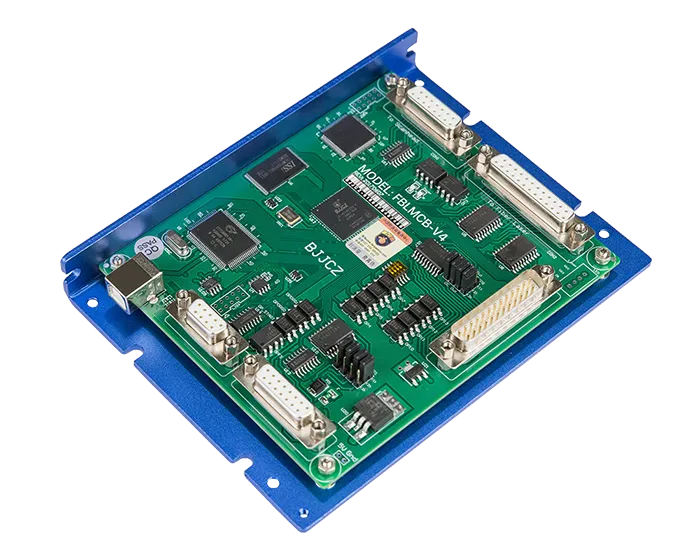

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

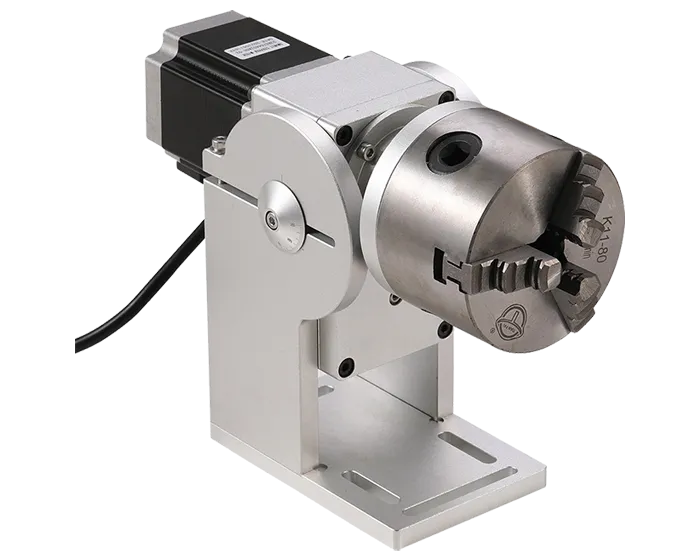

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Технические параметры

ModelVLF-E-20W 30W 50W 60W 80W 100W
Lens size75/110/150/175/220/300 mm optional
Laser sourceRAYCUS/JPT/MAX/IPG
Galvo systemHigh quality Galvo scanning
Laser Power Control0-100% Software Controlling
Axial Speed8000mm/s
Repeat Location Accuracy± 0.02mm
VoltageAC110V 60HZ or AC220V 50HZ ±10%
Cooling SystemAir cooling
Min character0.1mm
Operate systemWindows XP/7/8/10
Format SupportPLT/DXF/AI/SDT/BMP/JPG/JPEG
SoftwareEzcad
Package sizeLength*width*height :1020*550*1060mm  Gross weight:120kg

Применение промышленности

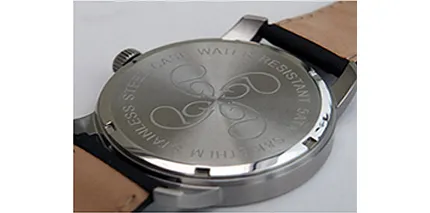

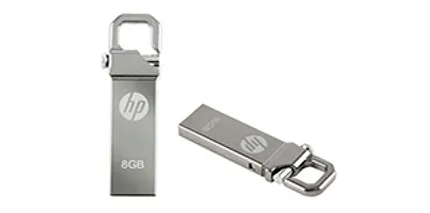

Suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic&Paper Materials, The Electron, Hardwarewhich with high request for depth, smooth, accuracy such ashorologe, Mould, bitmap marking etc.
