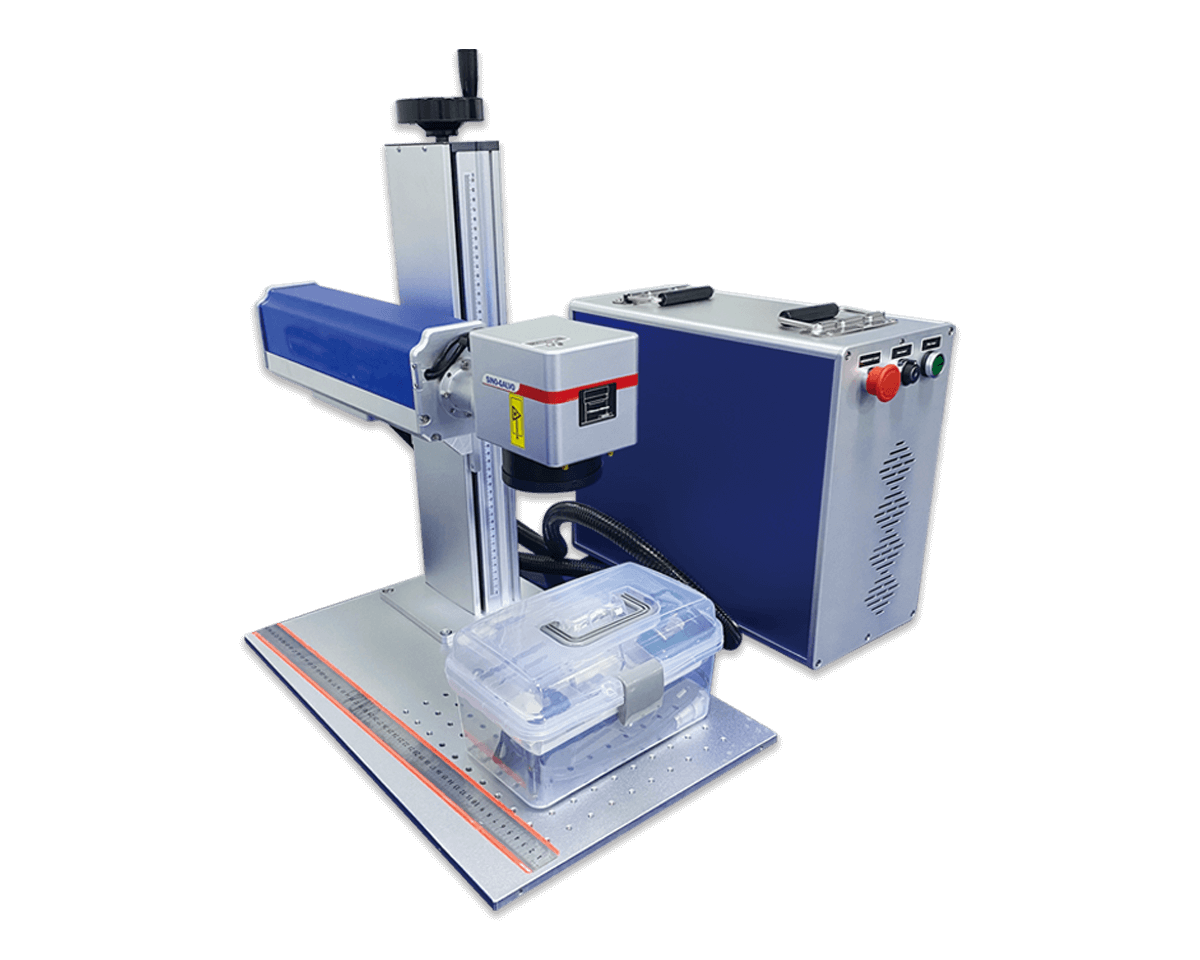

Portable Laser Marking Machine

Серия волокон

Portable Laser Marking Machine

Сразу запросить
Главная / Товары / Лазерная маркировочная машина / Серия волокон / Portable Laser Marking Machine

1. Long life

2. No consumable materials, Zero-maintenance

3. Excellent beam quality to achieve fine small marking

4. Can marking various figure, character, logo, bar code, bitmap, two-dimension code, photo etc

5. Support PLT, PCX, DXF, BMP, AI, vector graphics, bitmap etc

6. Stable equipment performance, continuous 24 hours working

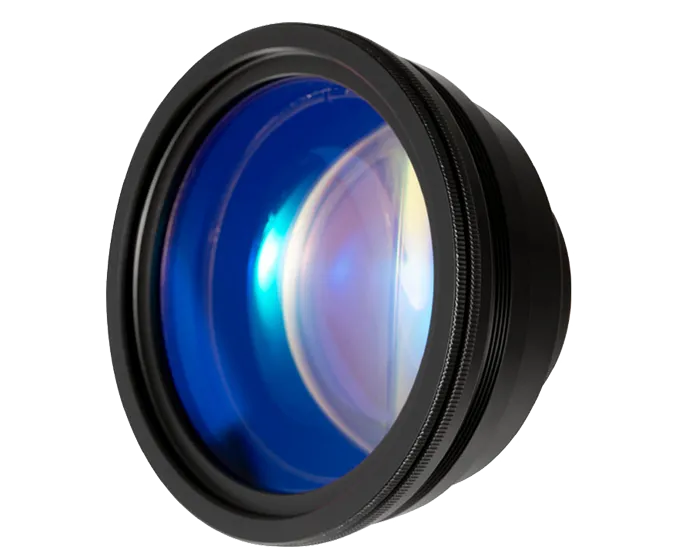

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size: 75*75mm,110*110mm,150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

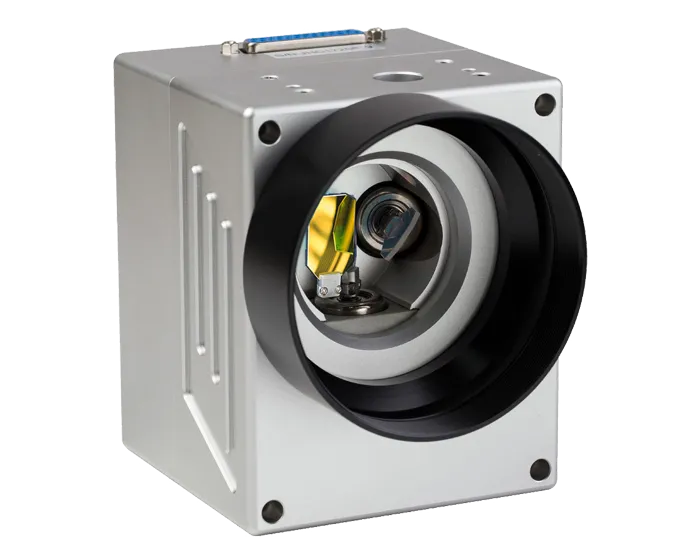

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus; Failed warning light ensure machine running correctly.

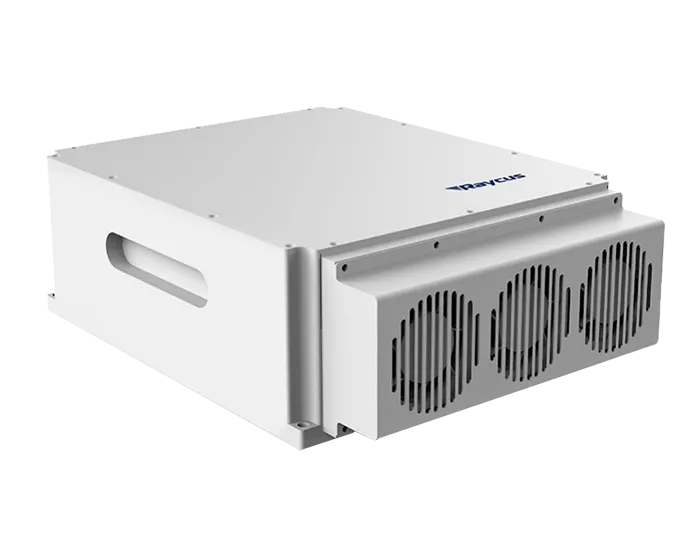

Raycus China best laser source

Raycus China best laser source

1.Highly stable laser output

2.High single-pulse energy

3.High marking efficiency

4.Short pulse setup time

5.High reliability

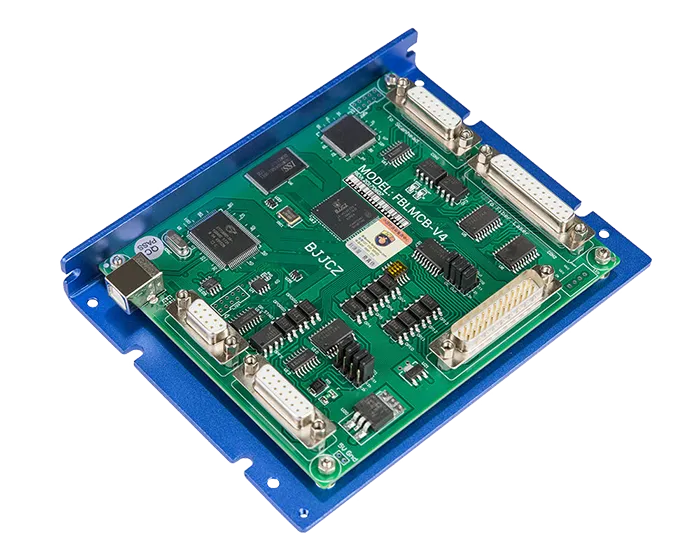

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

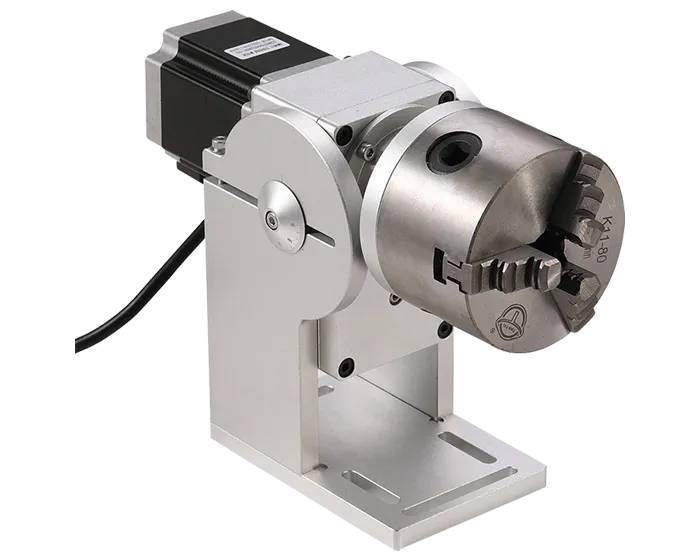

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

Технические параметры

Machine nameLaser Marking Machine
Laser power20W 30W 50W optional
Laser typeFiber laser
Laser source brandRaycus/JPT/MAX/IPG
Laser Wavelength1064nm
Marking area110*110, 150*150, 200*200, 300*300mm (optional)
Marking depth0-2mm ( Depending on material type and time)
Max marking speed0-7000mm/s
Min linear width0.02mm
Control softwareEZCAD software
Graphic format supportedBMP, DXF, PLT, AI, DST, JPG,etc
Working voltageAC220V 50HZ AC110V 60HZ
Cooling typeAir cooling
Warranty time3 years
Gross weight45kgs
Packing size75x41x78cm

Применение промышленности

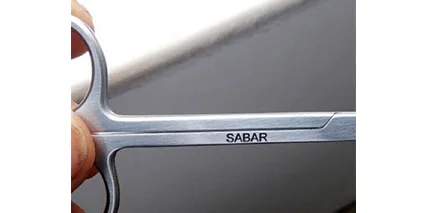

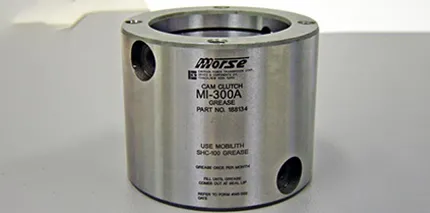

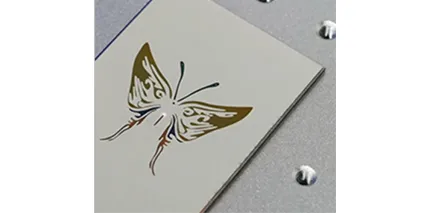

Metal material (gold, silver, copper, Iron, aluminum, titanium, zinc, stainless steel, etc)

Plastic material (PC、PVC、PE、HDPE、ABS、PPR、PET、HIPS、PS、PP、PPO、PA)

Others (Oil paint surface, coating surface, plastic film, package, etc)

50w 60W 80W 100w 120w more suit for deep engraving and cutting 1mm thickness metal jewelry.
